Double bar mats sendzimir galvanized 6/5/6

Description

Safe // Effective

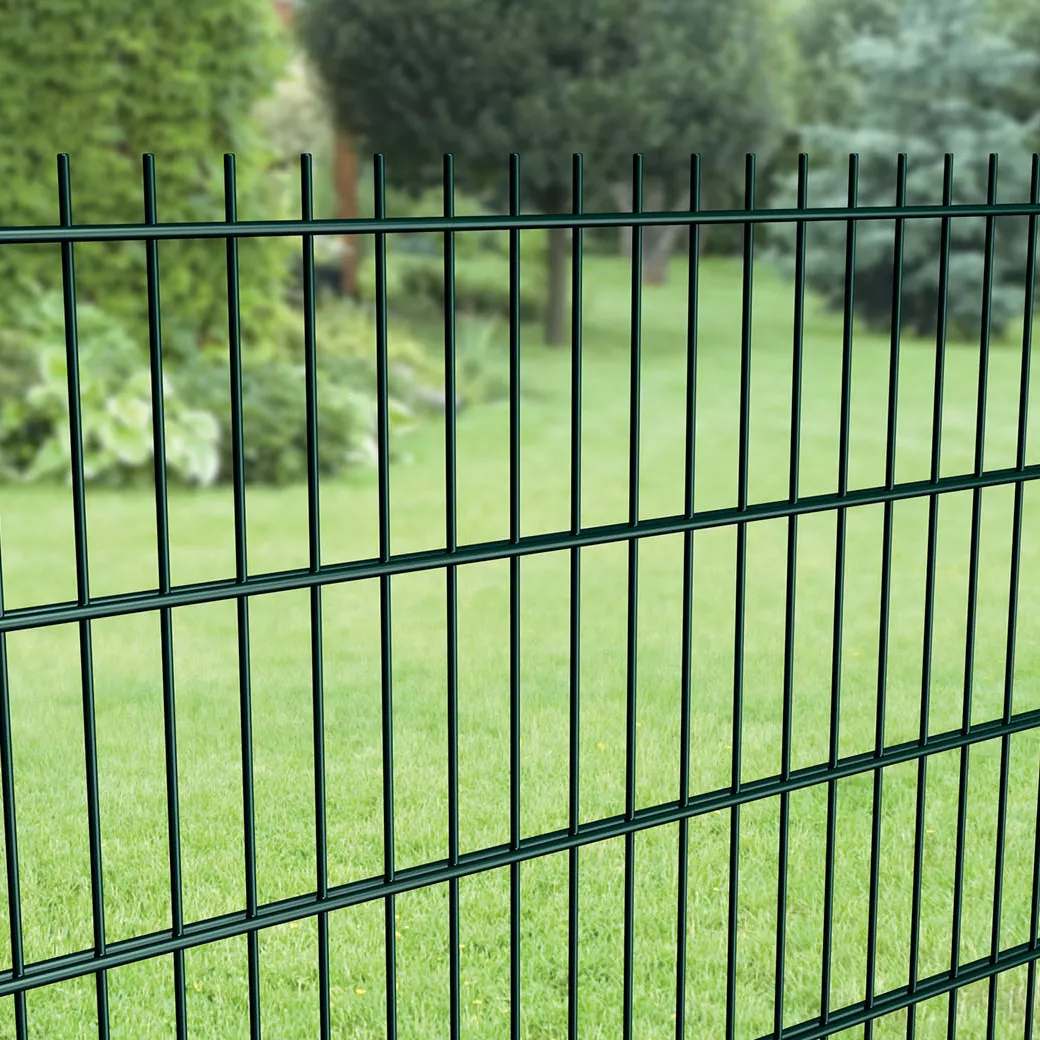

The double bar mat fence is stable and provides excellent site security. The double horizontal and vertical steel wires create a high-quality structure. The mesh size of 50 by 200 mm makes climbing virtually impossible. Safety is optimally ensured, as panels up to 1400 mm high are supplied as standard without overtopping points. Bar mats from 1630 mm high are equipped with overtopping points, giving the mat a higher security value.

The bar mat with 6/5/6 mm wires is stable yet durable. It is suitable for private properties, playgrounds, gardens, and parks, as well as commercial buildings and educational institutions.

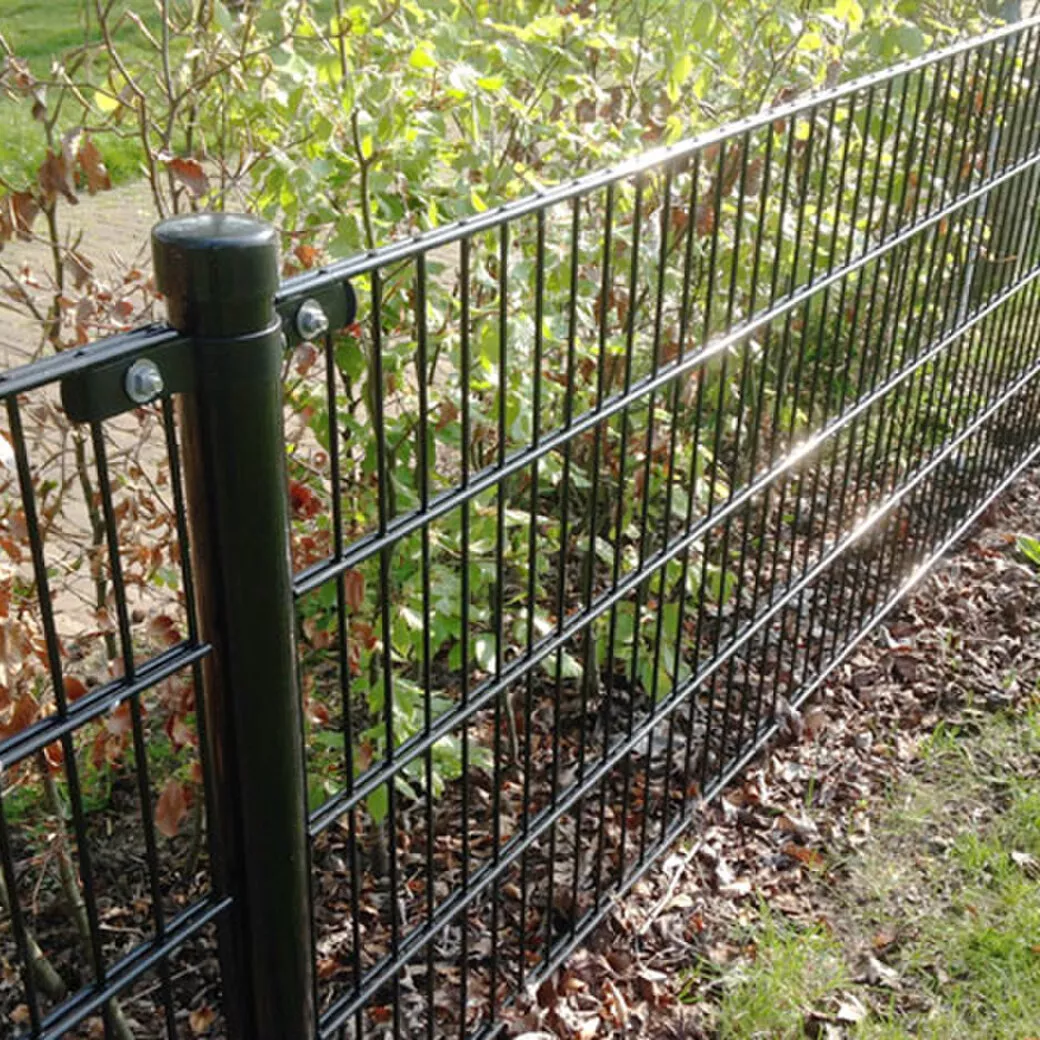

The bar mat can be supplied with various posts and mounting systems. For every site and application, there is a suitable mounting system that meets the required safety standards. The result is both attractive and functional.

The double bar mat fits perfectly between all Privacon swing gates, cantilever sliding gates, and rail sliding gates.

Technical specifications


Specifications bar mats
  • Welded bar mat
  • Standard width 2510 mm
  • Bar mat 6/5/6 is equipped with 2 horizontal wires of Ø6 mm and a vertical wire of Ø5 mm (tolerance +/- 0,4mm)
  • Mesh wisth 50x200 mm
  • Heights 600 t/m 1400 mm are standard without overtopping points
  • Heights from 1630 mm are standard without overtopping points

Treatments
  • Sendzimir galvanized according to standardEN10244-2
  • If required, powder coated according to standard NEN-EN 15773
  • In addition to the standard colors, the bar fence is available in all RAL kleuren

Product range

Back to the overview

Purposes

  • Parks
  • Company buildings
  • Office buildings
  • Educational institutions
  • Residential homes
  • Garden and landscapes
  • Parking garages
  • Transport and distribution companies
