Posts Ball catcher

Description

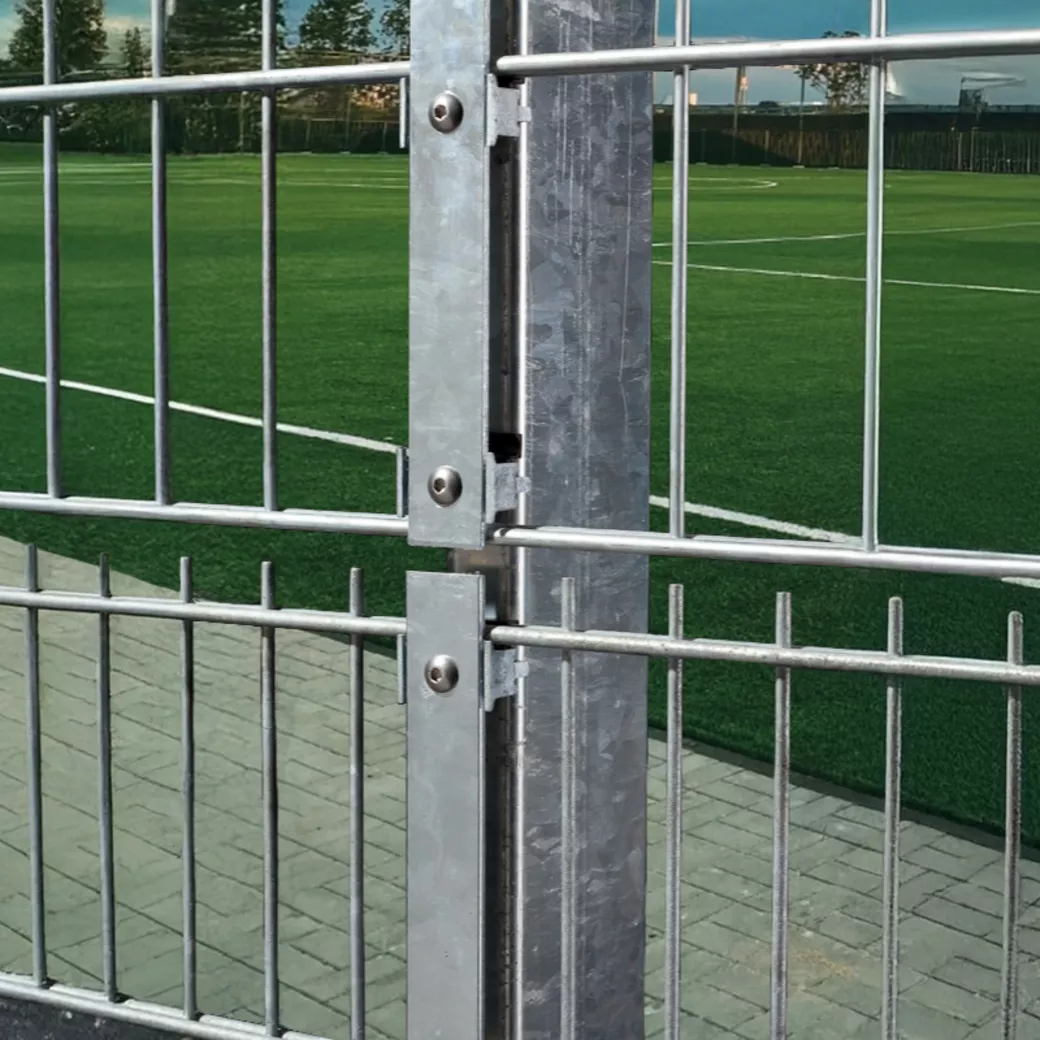

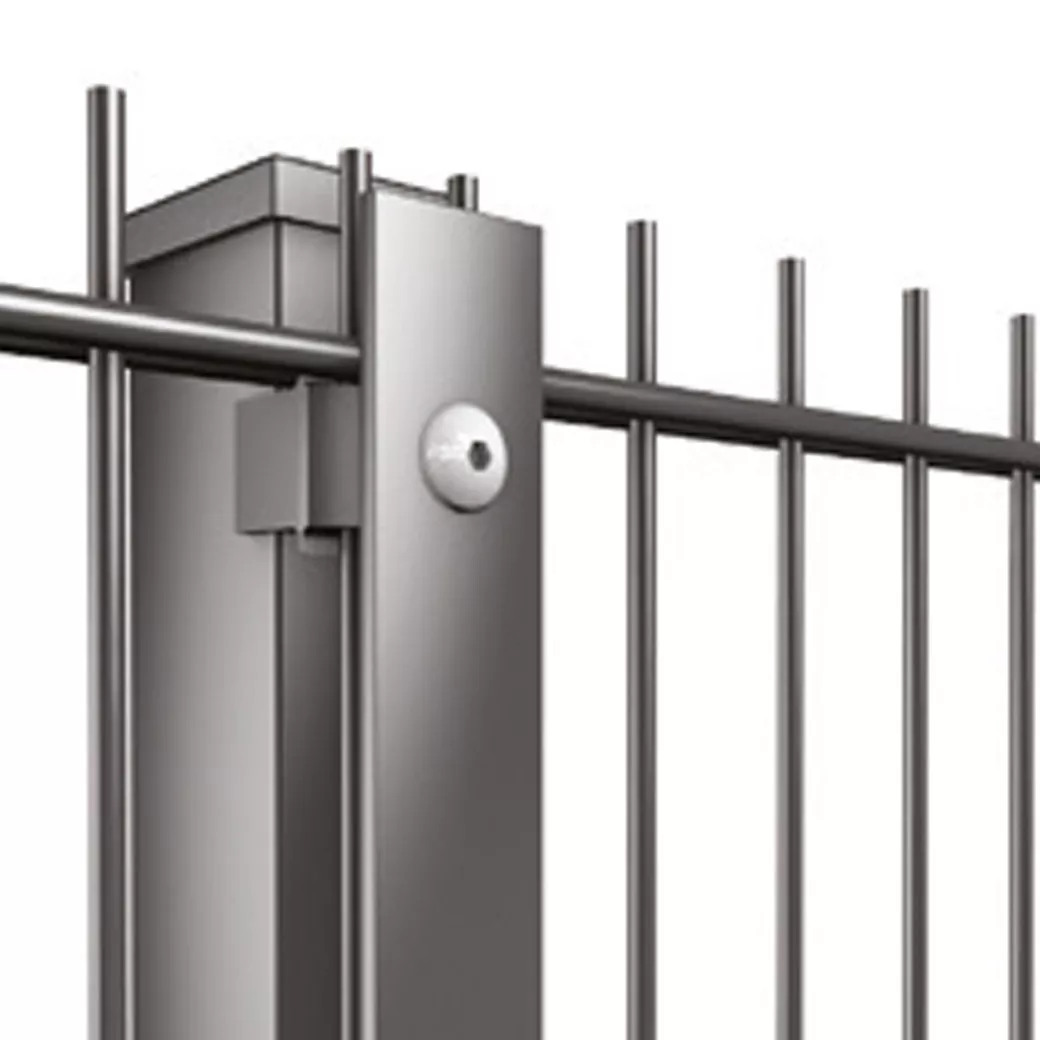

One of the fixing systems for the bar mat is the Ball catcher system. These posts are supplied with a plastic cap as standard. The mats are attached to the post by means of a continuous cover strip and plastic spacers.
The result is both nice as functional.

Technical specifications


Specifications posts:
  • Post 80x40x2, 100x40x3, 120x40x3, 140x40x4 mm
  • Plastic cap
  • Plastic spacer with aluminum blind rivet nut
  • Continuous cover strip 40x5
  • Including socket screw
  • Distance between the posts 2520 mm

Treatment:
  • Hot dip galvanized according to standard NEN-EN-ISO 1461
  • Standard colors, sendzimir galvanized according to standard NEN-EN-ISO 10244-2
  • Provided with a powder coating according to standard NEN-EN 15773

Dimensions of posts:

Post 3800:
  • Length of the post: 80x40x2x3800 mm
  • Height of bar mat: 3000 mm
  • Overtopping points: yes

Post 4800:
  • Length of the post: 100x40x3x3800 mm
  • Height of bar mat: 4000 mm
  • Overtopping points: yes

Post 6000:
  • Length of the post: 100x40x3x3800 mm
  • Height of bar mat: 5000 mm
  • Overtopping points: yes

Post 4800:
  • Length of the post: 120x40x3x4800 mm
  • Height of bar mat: 4000 mm
  • Overtopping points: yes

Post 6000:
  • Length of the post: 120x40x3x6000 mm
  • Height of bar mat: 5000 mm
  • Overtopping points: yes

Post 7000:
  • Length of the post: 120x40x3x7000 mm
  • Height of bar mat: 6000 mm
  • Overtopping points: yes






Standard color schemes

RAL 7016
RAL 9005
