Cantilevered sliding gate Kyra

Description

Functional // Contemporary

The cantilevered Kyra sliding gate with diagonal 25x25 mm bars combines a modern appearance with high functionality and security. Thanks to the welded frame and strong profiled bottom beam, this gate is extremely stable and durable. The high-quality, ball-bearing wheels integrated within the bottom beam ensure smooth, quiet, and reliable guidance.

The Kyra VDS is designed for long-term use under various conditions and contributes significantly to the secure fencing of sites. From a height of 150 cm, the bars at the top and bottom are bevelled, which makes climbing over considerably more difficult.

The sliding gate is easy to install and available for openings from 3 to 10 meters. In addition to the standard versions, the Kyra VDS can also be fully customized to suit specific applications and requirements.

Optionally, the gate can be equipped with an electric drive for automatic opening and closing.

The Kyra sliding gate perfectly complements the matching Kyra bar fence, Kyra swing gate, and other types of fencing.

Technical specifications


Specifications gate:
  • Bottom beam of a steel C-profile 90x100 mm
  • Gate constructed from steel profiles
  • Gate filling with round bars Ø25 mm
  • The gate provided with extending bars
  • Bars from H1500 mm standard 45° bevelled

Portal:
  • Guide and closing portal in double execution

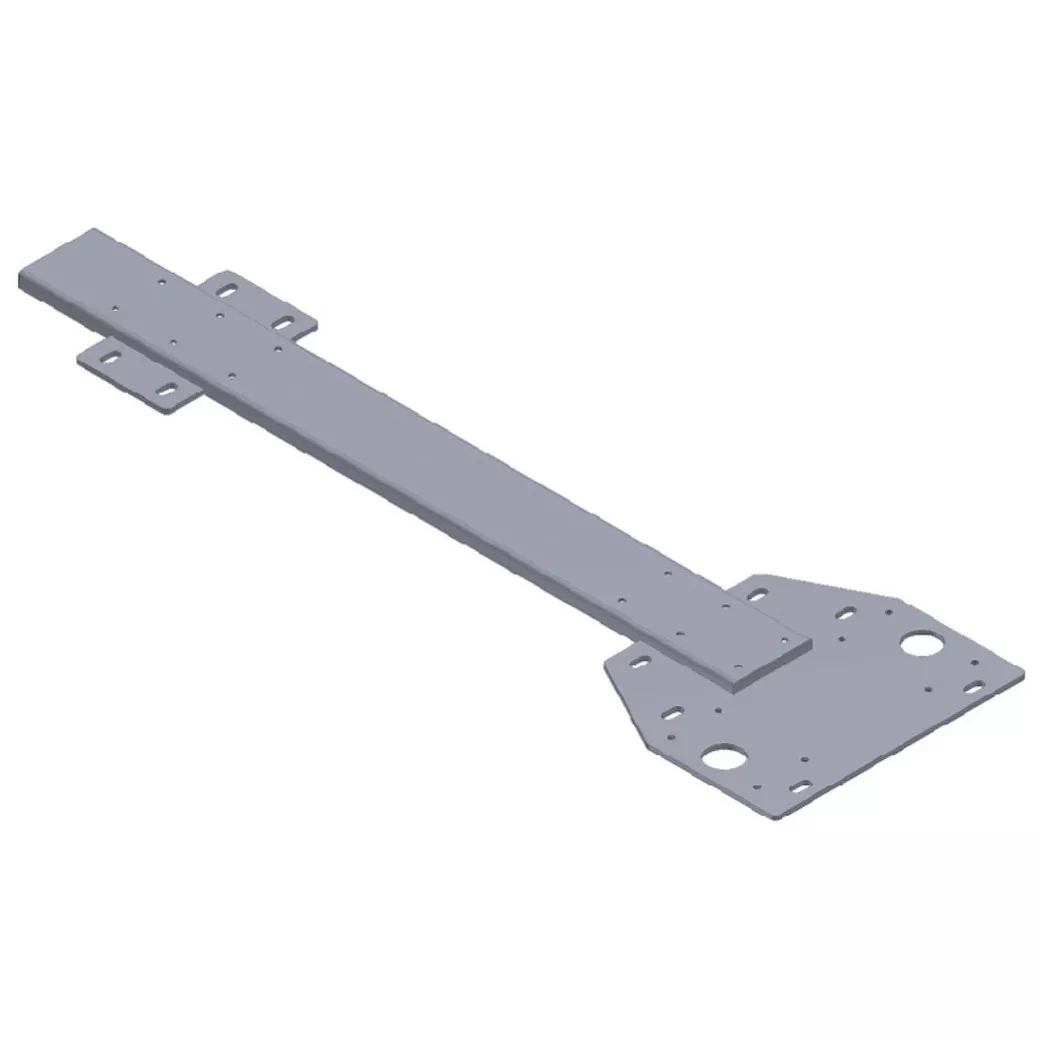

  • Portal on base plate

Guide:

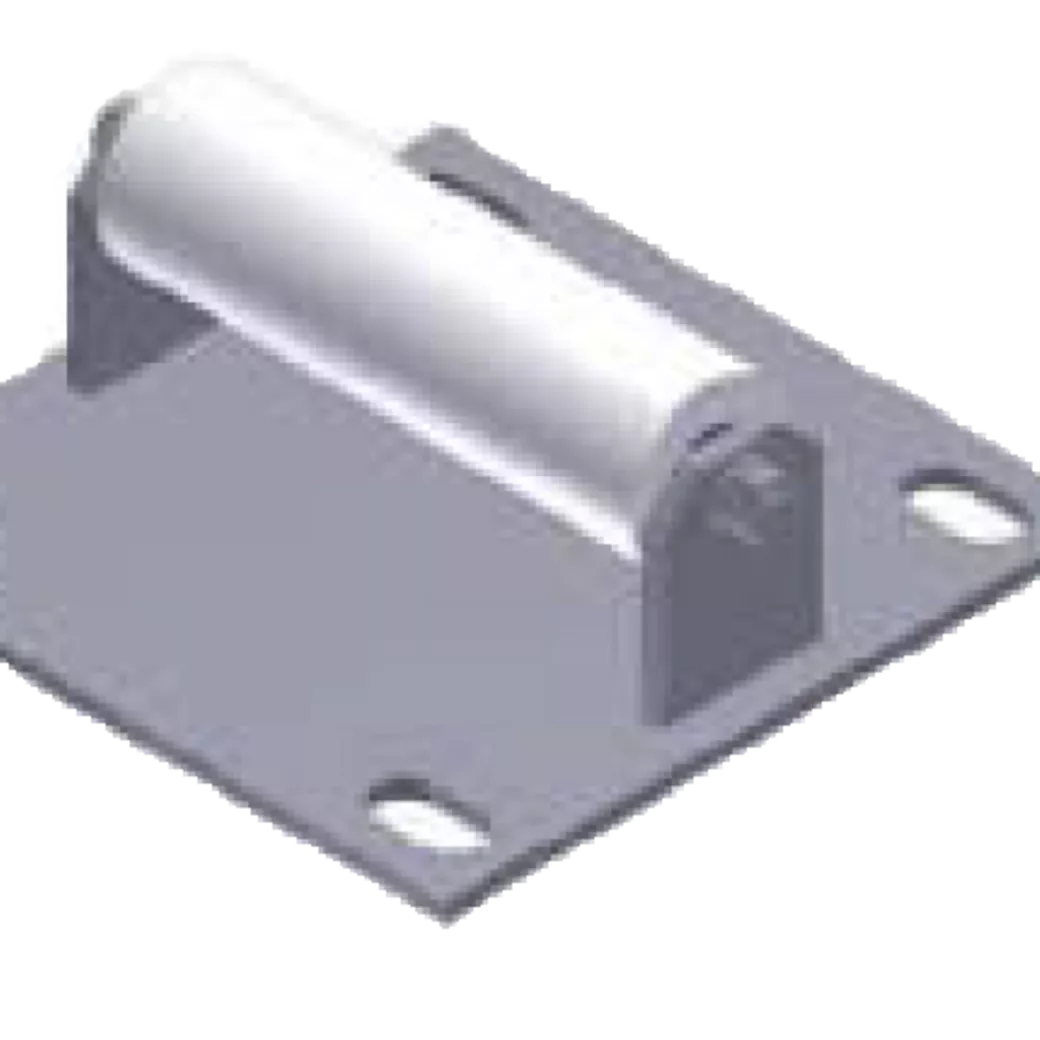

  • Wheel sets on steel base plate with internal ball bearing wheels
  • With shielded guide wheels at the top

Closing:

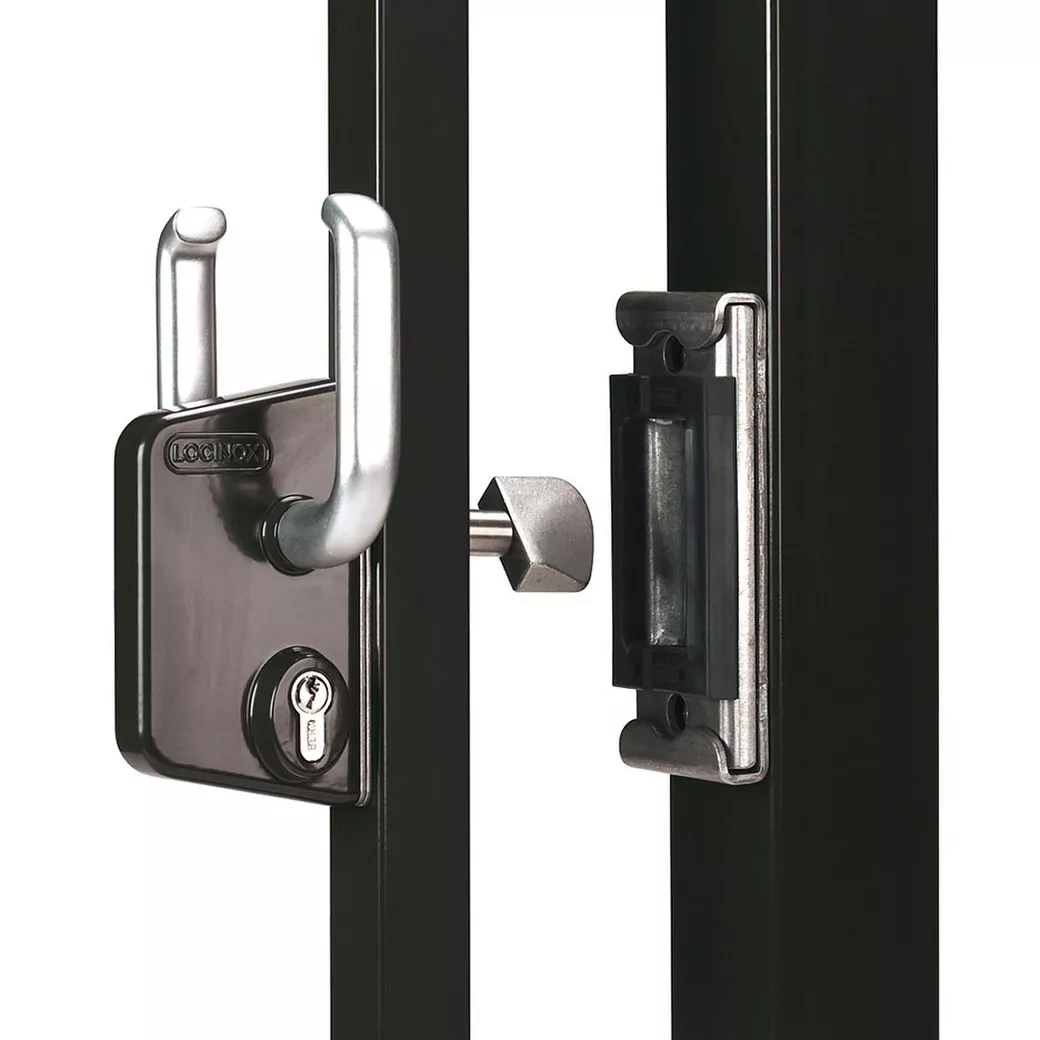

  • The sliding gate is supplied incl. Locinox sliding gate lock with aluminum case and stainless steel interior
  • Lock with Twistfinger with lateral autocorrection stop
  • Gates up to a 7000 mm passage are provided with a end catcher
  • Gates from a 7000 mm passage are fitted with an end stop and a roller guide

Treatment:
  • Hot dip galvanized according to standard NEN-EN-ISO 1461
  • If required, powder coated according to standard NEN-EN 15773

Standard color schemes

Available in all RAL colors

Product range

Back to the overview

Purposes

  • Company buildings
  • Office buildings
  • Storage sites
  • Transport and distribution companies
  • Garden and landscape
  • Educational institutions
  • Parking garages
  • Airports
  • Port areas
  • Individuals
